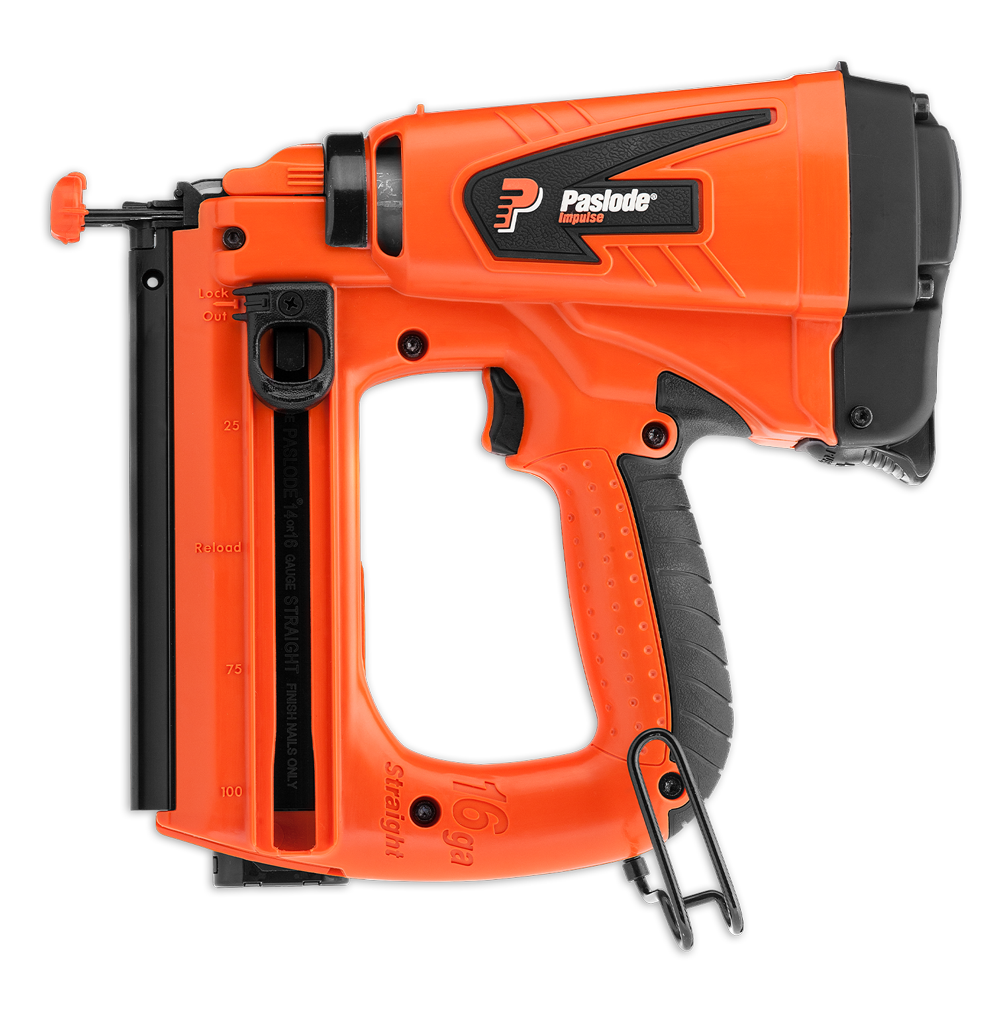

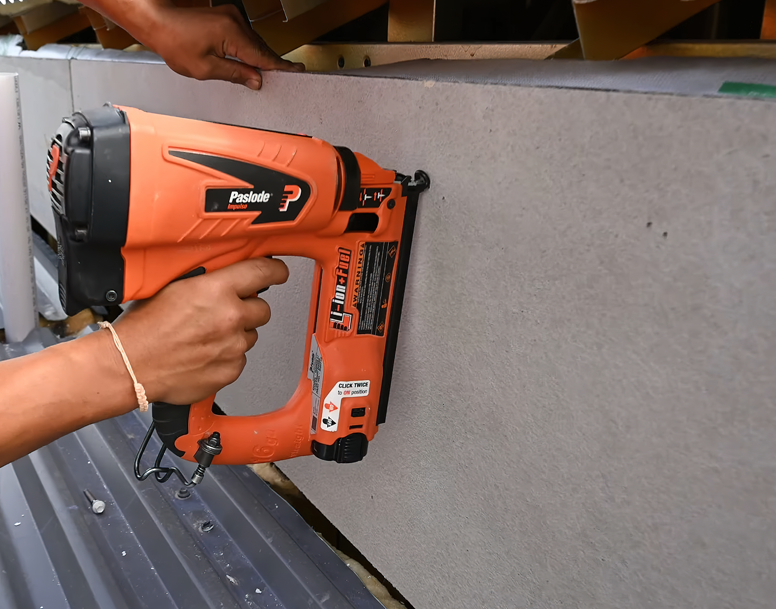

Paslode Straight TrimMaster (14Ga 16Ga) large range of brads allows you to seamlessly move from fix out to cladding installation with one tool and a quick change out of the Swap “N” Lock nose plates for both 14Ga and 16Ga Brads – the ultimate in versatility. This is the previous model of the more recent New Paslode Straight TrimMaster™ which is now available via this link.
Note: The Paslode Straight TrimMaster™ is the previous model of the more recent New Paslode Straight TrimMaster™ which is now available via this link.
Gallery
Specifications
Features
- Swap’N’Lock: easy to change from 16ga to 14ga (larger shank diameter)
- Lithium Ion Battery Technology: 50% more shots per charge allowing you to complete the job faster

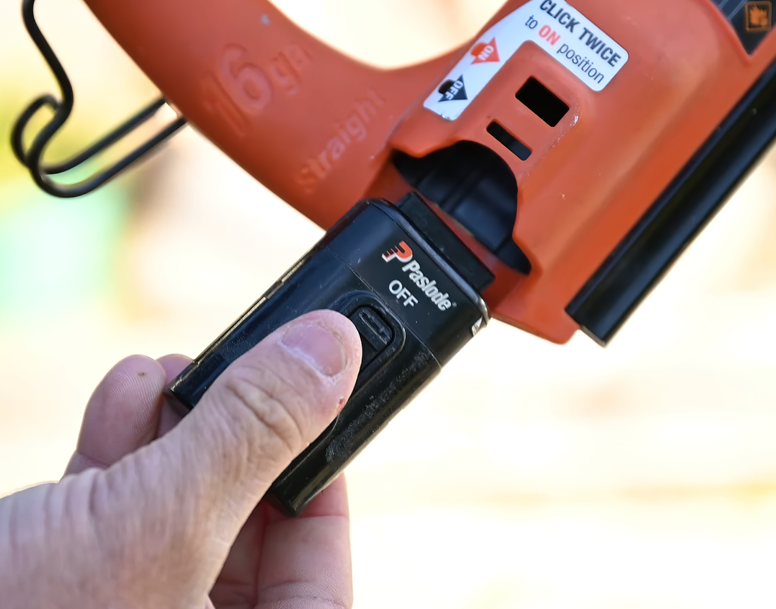

- Battery On/Off Position: locks battery in place when disengaged for safer handling and minimising the need to replace batteries
- Improved line of sight: for accurate brad placement
- Quick clear nose: reduces downtime if fastener jam occurs
- Brad lock out bar eliminates blank tool firing to protect timber and tool
- Lithium-Ion battery drives 9,000 shots per 1 hour charge time.
- Low actuation pressure reduces operator fatigue.
- Ergonomic design with non-slip hand grip to improve comfort and safety with belt and rafter hook for convenience.

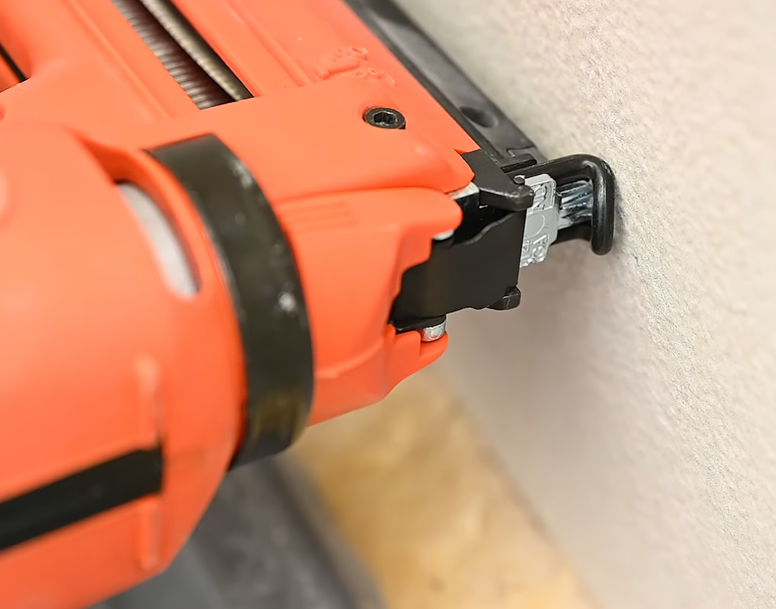

- No Mar Tip prevents damage to timber and cladding surfaces.
Previous models
- N/A
| Specifications | |
|---|---|
| Model Name | IM250S-Li |
| Product Code | B20710 |
| Cycle Rate | 2-3 brads/second intermittently |
| Weight | 2.1kg |
| Fastener Range | C (16ga) 25-65mm, ND (14ga) 30-62mm |
| Fuel Cell Life | 1000 approx |
| Dimensions (L x H x W) | 267 x 299 x 87mm |
| Battery Life | 9,000 shots per charge |
| Magazine Capacity | 100 approx |
| Collation Angle | 0° |
| Applications |
|---|
| Architraves |
| Beading |
| Mouldings |
| Skirting Boards |
| Quads |
| Panelling |
| Stair Rails |
| Window Reveals (ND only) |
| Door Jambs (ND only) |
Featured Videos
Paslode Straight TrimMaster
Watch this video to find out all the features of the Paslode Straight TrimMaster™
Watch More On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Fastener Charts
Brads Compatible with Paslode Straight TrimMaster™
Here’s a list of recommended fasteners to use with your Paslode Straight TrimMaster™.
Brad and Fuel Packs – STEEL FRAME BRAD
| Product Code | Length | Diameter | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20638 | 38mm | 1.7mm | ND | Zinc Plated | 2 | 2000 |
| B21645 | 45mm | 1.7mm | ND | Zinc Plated | 2 | 2000 |
Brad and Fuel Packs – C Series (16ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20623 | 25mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20650 | 25mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20625 | 32mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20627 | 38mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20654 | 38mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20629 | 45mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20630 | 50mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20657 | 50mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20632 | 65mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
Brad and Fuel Packs – ND Series (14ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20640 | 30mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20641 | 38mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20660 | 38mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
| B20642 | 45mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20643 | 50mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20665 | 50mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
| B20645 | 62mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
