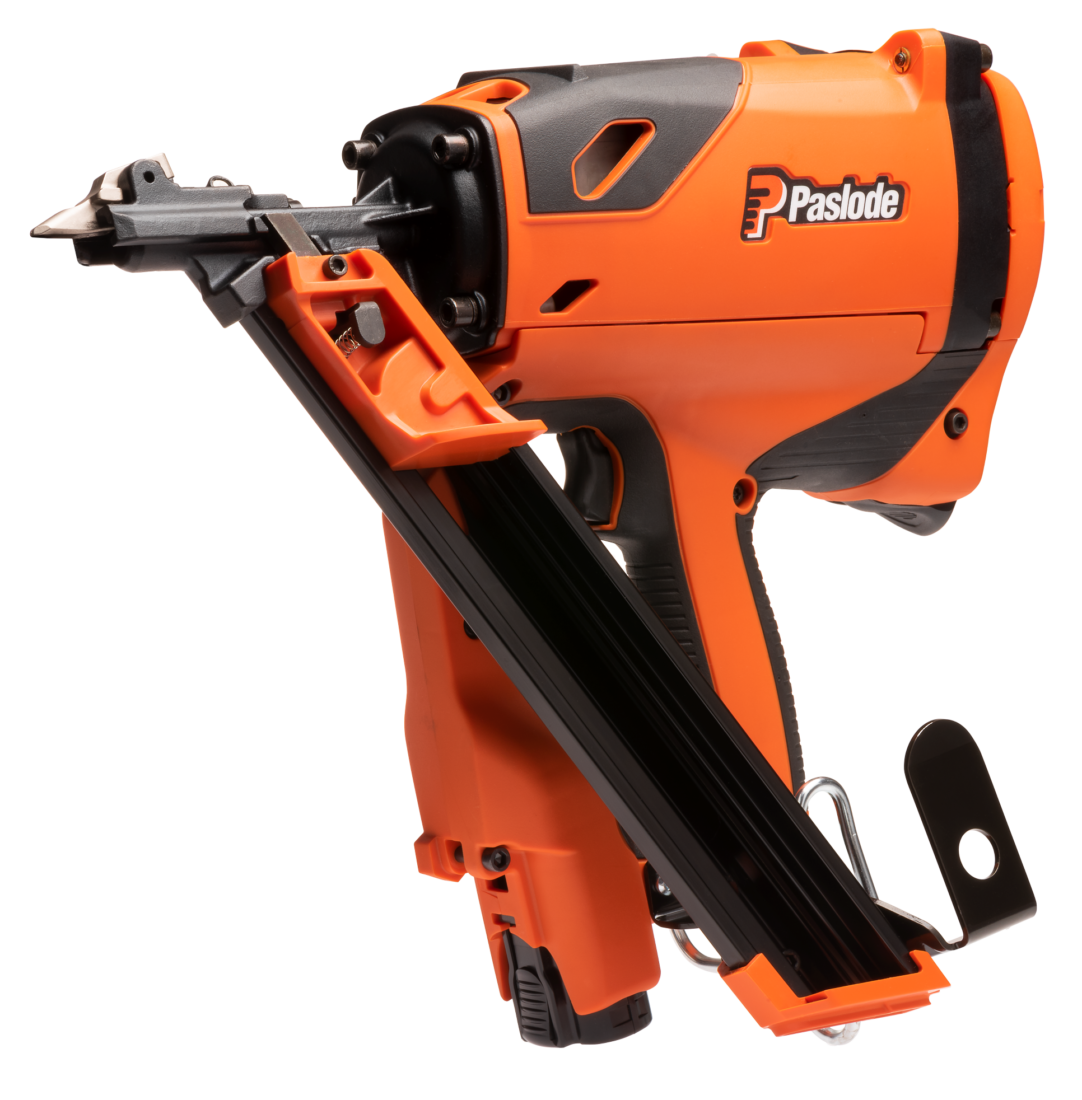

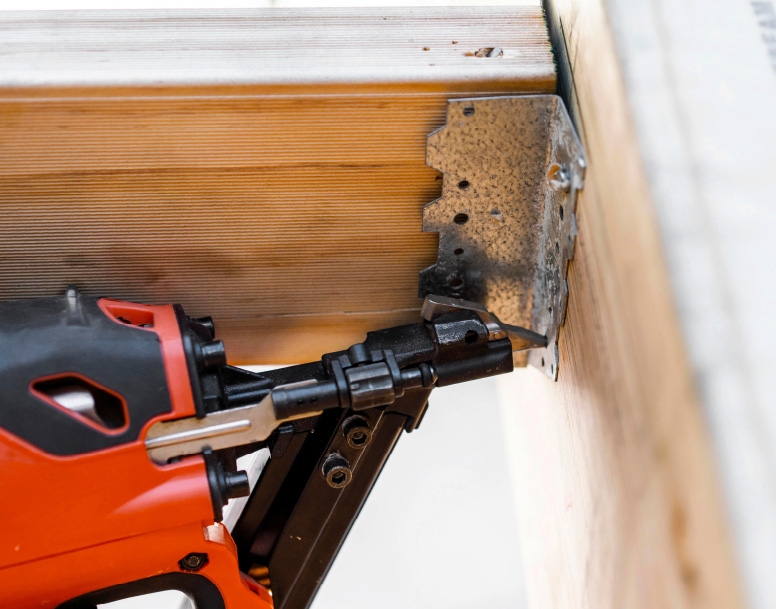

The Paslode PPN-Master™ – The Positive Placement Nailer is a powerful and reliable cordless tool that has been developed in Australia to help tradespeople quickly and efficiently install metal connectors and comply with industry standards. The PPN-Master™ (Positive Placement Nailer) saves time and reduces fatigue caused by hand hammering and handling pneumatic tools on site . PPN-Master™ is suitable for a variety of applications, including Joist Hangers, I-Joist Hangers, Triple grips, Multigrips, Strap bracing and other metal connectors.
Gallery
Specifications
Features
- Line of sight: Contoured body ensuring optimum nail placement
- Flat Head: Allows the tool to be balanced on surfaces
- Long fan run cycle: For rapid fire performance
- Exposed tip design: Allows for ease of placement into metal connector guide holes
- Enhanced nail control: Ensuring consistent drivability and correct depth of nail placement
- Bypass follower: Effortless nail loading for maximum efficiency, saving time and effort
- Impulse technology: Fuel technology delivers reliability, comfort, and performance
- Utility hook: Left and right belt and rafter hook
Previous models
- N/A
| Specifications | |
|---|---|
| Model Name | PASLODE PPN-MASTER™ |
| Product Code | B60001 |
| Cycle Rate | 1000/hr (intermittent 2-3/sec) |
| Weight | 3.03kg |
| Fastener Length | 35-40mm |
| Fuel Cell Life | 800 Nails (approx.) |
| Dimensions (L x H x W) | 310 x 345 x 138mm |
| Battery Life | 10,000 shots per charge |
| Magazine Capacity | 1 strip (25 nails) |
| Applications |
|---|
| Cyclone Ties |
| Joist Hangers |
| Multi Grips |

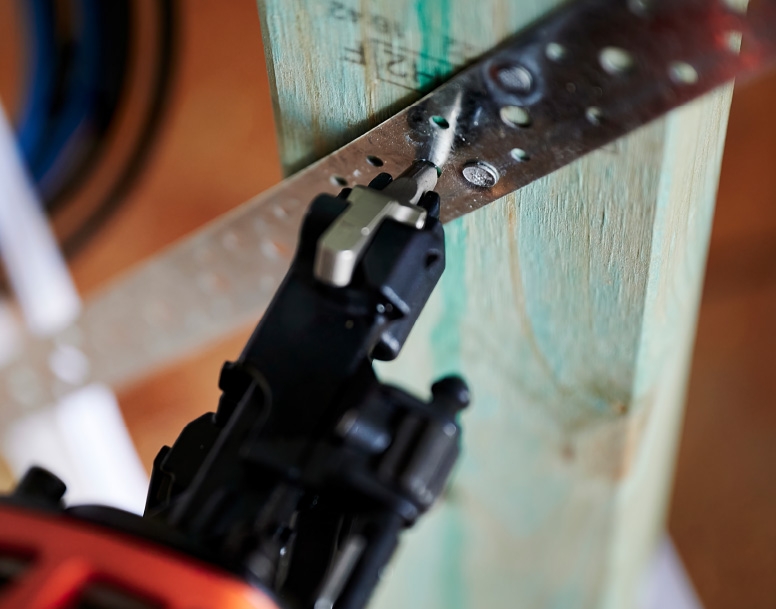

| Strap Bracing |
| Triple Grips |
| I-Joist Hangers |
Featured Videos
Introducing the all-new 2023 PASLODE PPN-MASTER™
Introducing the all-new Paslode PPN-MASTER™ (Positive Placement Nailer) — the fastest most convenient way to install metal connectors.
Wilco Projects | Paslode Stories
Hear it from Sam: “Using the Paslode PPN-Master™ was so much easier than using a hammer and it save us so much time.”
O’Shea & Sons Builders | Paslode Stories
They’ve noticed a huge increase in productivity from the get-go. Specifically with I-Joists, that took days to do in the past, now it’s a matter of hours with the PPN Master™
Watch More On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Fastener Charts
Fasteners Compatible with 2023 Paslode PPN-Master™
Here’s a list of recommended fasteners to use with your Paslode PPN-Master™.
impulse value packs
| Product Code | Length | Diameter | Head | Shank Type | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|---|
| B60035 | 35mm | 3.15mm | Round Head | Smooth | Mech Galv | 2 | 1600 |
| B60040 | 40mm | 3.75mm | Round Head | Smooth | Mech Galv | 2 | 1600 |
