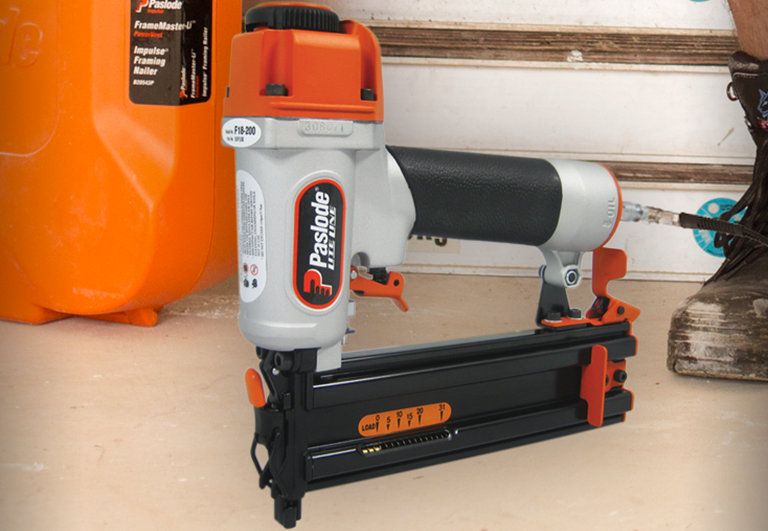

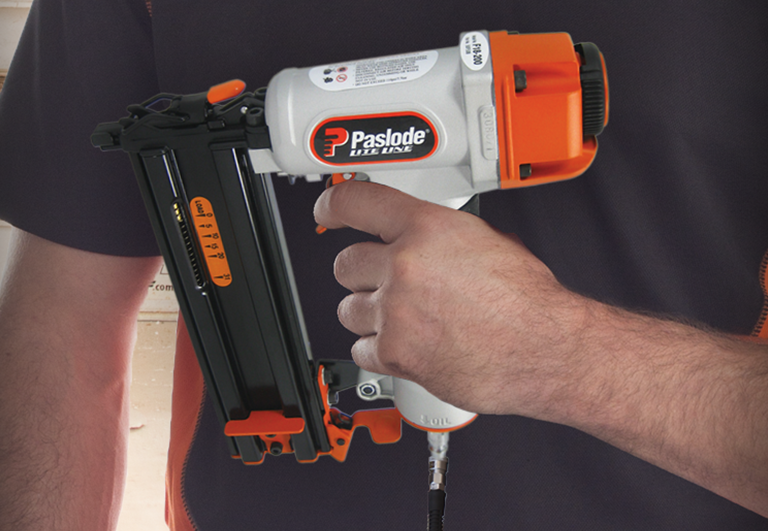

The Paslode Pneumatic LiteLine C1 50 Bradder is designed for comfort and reliability for volume projects.
The Paslode Pneumatic LiteLine C1 50 Bradder drives fine C1 Series 18GA brads up to 50mm in length. Compact and lightweight, the tool is designed for comfort and reliability for volume projects.
Gallery
Specifications
Features
- Pneumatic technology for reliability and all weather performance
- Corrosion resistant aluminium housing for long life
- Bypass nail follower for easy and fast re-loading
- Ergonomic design with non-slip hand grip to improve comfort and safety
- Sequential and bump fire mode
Previous models
- N/A
| Specifications | |
|---|---|
| Product Code | B20060 |
| Weight | 1.30kg |
| Operating Pressure | 5.5 to 8.3bar (80 to 120psi) |
| Dimensions (L x H x W) | 50 x 230 x 243mm |
| Air Consumption at 6.9bar (100psi) | 0.020 cu. Ft. / cycle |
| Collation Type | Adhesive |
| Magazine Capacity | 100 brads |
| Cycle Rate Per Second | 5 brads |
| Brad Range Length (1.2mm Brads) | 13-50mm |
| Brad Diameter | 1.2mm (18 gauge) |
| Brad Type | C1 series |
| Recommended Air Fitting Diameter | 6-10mm |
| Applications |
|---|
| Fine trim and moulding |
| Craft D.I.Y applications |
| Native timbers (shiplap and tongue and groove boards) |
| Picture framing |
Featured Video
How to maintain and clean your Paslode Pneumatic Tool
This video shows best practice for caring for your Paslode Pneumatic tool.
Watch Our Videos On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Fastener Charts
Nails Compatible with Paslode Pneumatic Liteline C1 50 Straight Bradder
Here’s a list of recommended fasteners to use with your Paslode Pneumatic Liteline C1 50 Straight Bradder.
Fasteners
| Product Code | Length | Brad (Gauge) | Finish | Head | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20075 | 25mm | C1 Series (18ga) | Electro Galv | Lost | 5000 | 75000 |
| B20077 | 30mm | C1 Series (18ga) | Electro Galv | Lost | 5000 | 75000 |
| B20081 | 40mm | C1 Series (18ga) | Electro Galv | Lost | 5000 | 50000 |
| B20085 | 50mm | C1 Series (18ga) | Electro Galv | Lost | 5000 | 45000 |
