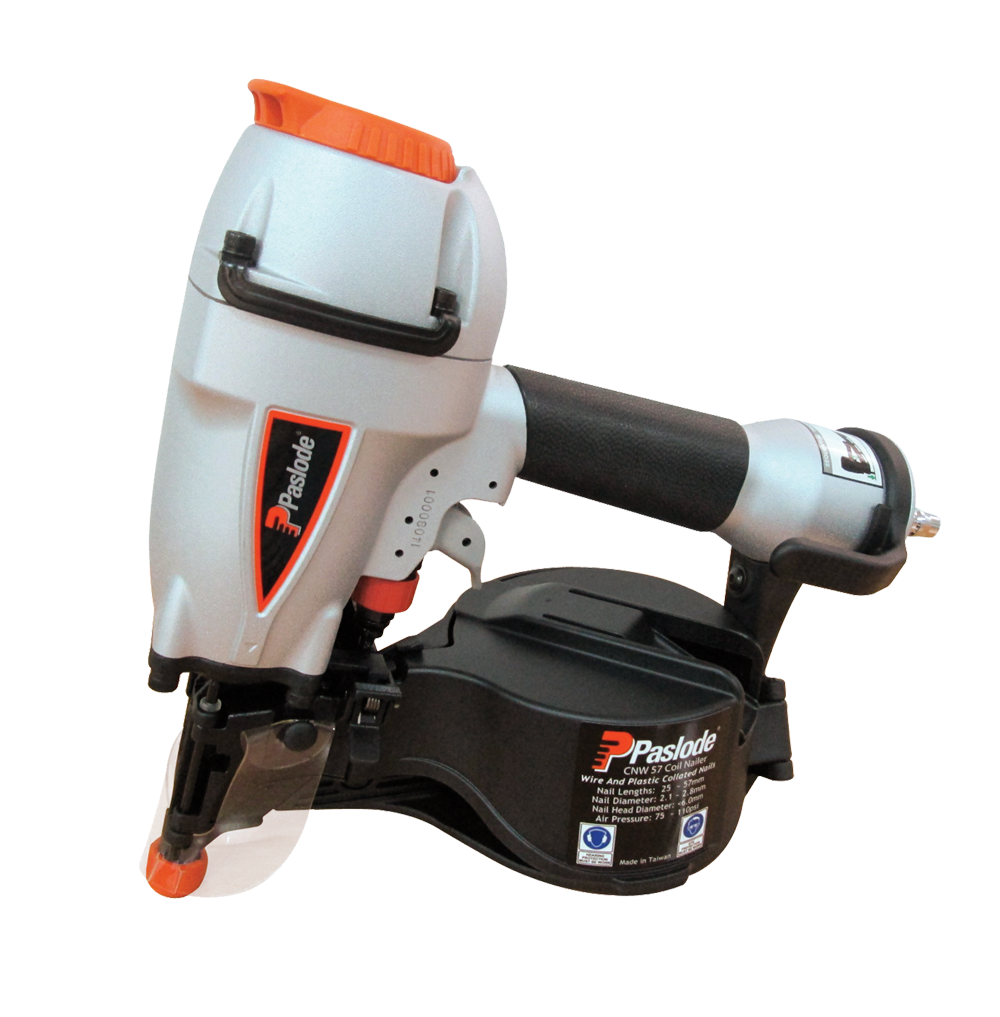

The Paslode Pneumatic CNW 57 15° Coil Nailer is a trade quality tool with enough power to drive nails up to 57mm in length into hard timber. Ideal for industrial and high volume applications.
The Paslode CNW 57 15° Coil Nailer is a trade quality tool with enough power to drive nails up to 57mm in length into hard timber. Ideal for industrial and high volume applications.
Gallery
Specifications
Features
- Pneumatic technology for reliability and all weather performance
- Corrosion resistant aluminium housing for long life
- High power for hardwood applications
- Bypass nail follower for easy and fast re-loading
- Adjustable depth of drive gives greater flexibility for nail placement and a superior finish
- Engineered skew nailing teeth placement helps grip timber
- Sequential and bump fire triggers available
- Ergonomic design with non-slip hand grip to improve comfort and safety
- Belt and rafter hook for convenience
- Nail lock out bar eliminates blank tool ring to protect timber and tool
Previous models
- N/A
| Specifications | |
|---|---|
| Product Code | B21094 |
| Weight | 2.4kg |
| Fastener Range | 25 – 57mm |
| Operating Pressure | 480 – 760kpa (70 – 110psi) |
| Dimensions (L x H x W) | 283 x 289 x 133mm |
| Air Consumption | 1.2 litres @ 690kpa |
| Collation Angle | 15° |
| Magazine Capacity | 250 approx |
| Applications |
|---|
| Brace Board |
| Strapping |
| Cladding |
| Metal Connectors |
| Pallet Making |
| Decking |
| Formwork |
| Fencing |
Featured Video
Paslode Pneumatic Coil Nailer – Overview
Watch the video to learn more about our Paslode Pneumatic CNW 57 Coil Nailer.
Watch Our Videos On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Fastener Charts
Nails Compatible with Paslode Pneumatic CNW 57 Coil Nailer
Here’s a list of recommended fasteners to use with your Paslode Pneumatic CNW 57 Coil Nailer.
Fasteners
| Product Code | Diameter | Length | Head | Shank Type | Finish | Box Qty |
|---|---|---|---|---|---|---|
| B25105 | 2.5mm | 27mm | Round | Ring | Electro Galv | 3600 |
| B25250 | 2.5mm | 32mm | Round | Screw | Hardened E/Galv | 400 |
| B25110 | 2.5mm | 32mm | Round | Screw | Hardened E/Galv | 3600 |
| B25255 | 2.7mm | 32mm | Round | Smooth | Hot Dipped Galv | 400 |
| B25115 | 2.7mm | 32mm | Round | Smooth | Hot Dipped Galv | 3600 |
| B25120 | 2.7mm | 32mm | Round | Ring | Hot Dipped Galv | 3600 |
| B25260 | 2.5mm | 45mm | Round | Ring | Hot Dipped Galv | 400 |
| B25135 | 2.5mm | 45mm | Round | Ring | Hot Dipped Galv | 1800 |
| B25265 | 2.5mm | 50mm | Round | Ring | Hot Dipped Galv | 400 |
| B25140 | 2.5mm | 50mm | Round | Ring | Hot Dipped Galv | 1800 |
| B25145 | 2.5mm | 50mm | Dome | Ring | Hot Dipped Galv | 3600 |
| B25280 | 2.5mm | 52mm | Dome | Ring | Hot Dipped Galv | 400 |
| B25155 | 2.5mm | 52mm | Ring | Ring | Hot Dipped Galv | 3600 |
| B25270 | 2.5mm | 52mm | Dome | Ring | Stainless Steel | 400 |
| B25160 | 2.5mm | 52mm | Dome | Ring | Stainless Steel | 1800 |
| B25165 | 2.5mm | 52mm | Dome | Screw | Hot Dipped Galv | 1800 |
