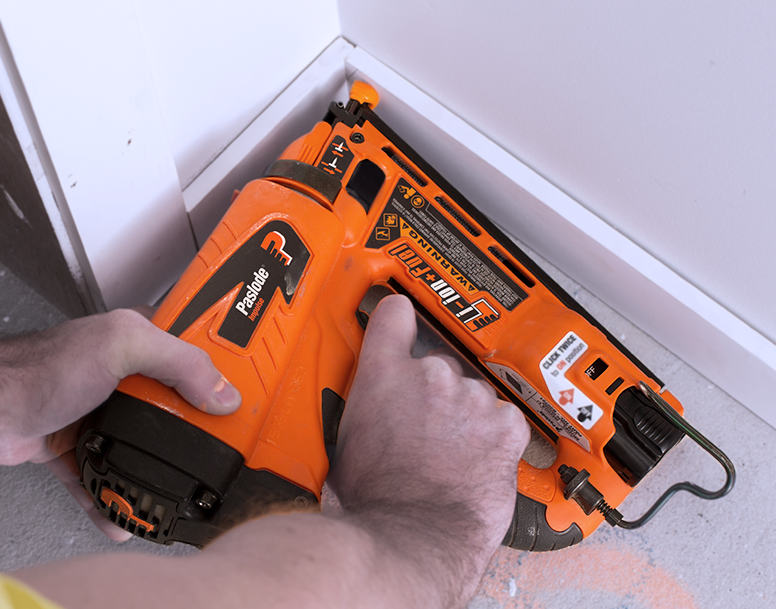

The Paslode Angled TrimMaster™ (16ga) has been built to perform. It is reliable, compact and lightweight tool and angled for easy access into tight corners. This is the previous model of the more recent Paslode Angled TrimMaster™ which is now available via this link.
Note: The Paslode Angled TrimMaster™ is the previous model of the more recent Angled TrimMaster™ which is now available via this link.
Gallery
Specifications
Features
- Lithium Ion Battery Technology: 50% more shots per charge allowing you to complete the job faster
- Battery On/Off Position: locks battery in place when disengaged for safer handling and minimising the need to replace batteries
- Improved line of sight: for accurate brad placement
- Quick clear nose: reduces downtime if fastener jam occurs
- Brad lock out bar eliminates blank tool firing to protect timber and tool
- Lithium-Ion battery drives 9,000 shots per 1 hour charge time.
- Low actuation pressure reduces operator fatigue.
- Ergonomic design with non-slip hand grip to improve comfort and safety with belt and rafter hook for convenience.
- No Mar Tip prevents damage to timber and cladding surfaces.
Previous models
- n/a
| Specifications | |
|---|---|
| Model Name | IM250A-Li |
| Product Code | B20721 |
| Cycle Rate | 2-3 brads/second intermittently |
| Weight | 2.0kg |
| Fastener Range | 32-63mm |
| Fuel Cell Life | 1000 approx |
| Dimensions (L x H x W) | 274 x 292 x 87mm |
| Battery Life | 9,000 shots per charge |
| Magazine Capacity | 100 approx |
| Collation Angle | 20° |
| Applications |
|---|
| Architraves |
| Beading |
| Mouldings |
| Skirting Boards |
| Quads |
| Panelling |
| Stair Rails |
Featured Videos

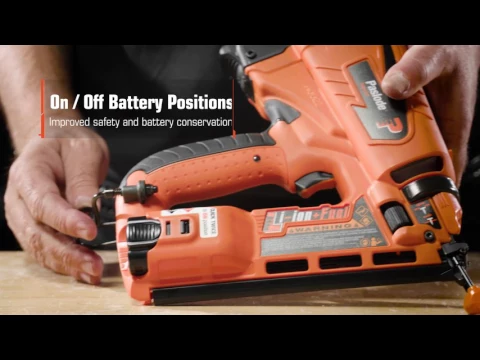

Features of the Paslode Angled TrimMaster™
The Paslode Impulse TrimMaster-Li 16ga Angled Bradder is compact and angled for easy access into tight corners.
How to fix a Nail Jam in the Paslode Angled TrimMaster™
Watch this video to learn how to remove a jammed nail and how to get the bradder working again.
How to clean the Paslode Angled TrimMaster™
Watch best practice to clean your Impulse Bradder nailer
Watch More On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Fastener Charts
Brads Compatible with Paslode Angled TrimMaster™
Here’s a list of recommended fasteners to use with your Paslode Angled TrimMaster™.
impulse value packs
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20732 | 32mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
| B20738 | 38mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
| B20780 | 38mm | Angled(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20745 | 45mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
| B20750 | 50mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
| B20785 | 50mm | Angled(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20765 | 63mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
